Hitch Type:
Bumperpull
Axles:
Dual
Length:
24’ with a 5’ Tongue
Features:
Daikin Mini Split A/C System
7 kW generator and battery housed in weatherproof boxes on the front tongue for reliable power supply in remote locations
Multiple Access Points, side entry door and two rear doors for easy movement and loading of equipment
Curbside Roll-Up Door provides exterior access to four Hannay Reels for improved functionality
21' Aluminum Tubes secure storage solution with easy removal capability
Front counter with outlets above
Two drawer units
Drill Press secured to the floor for safe traveling and convenient access
Nine adjustable shelves above the wheel well for versatile storage options
Two strips at the rear for securing 2" oil hoses
Movable Arbor Press
Twelve recessed D-rings in the floor for securing large equipment, ensuring safety during transport

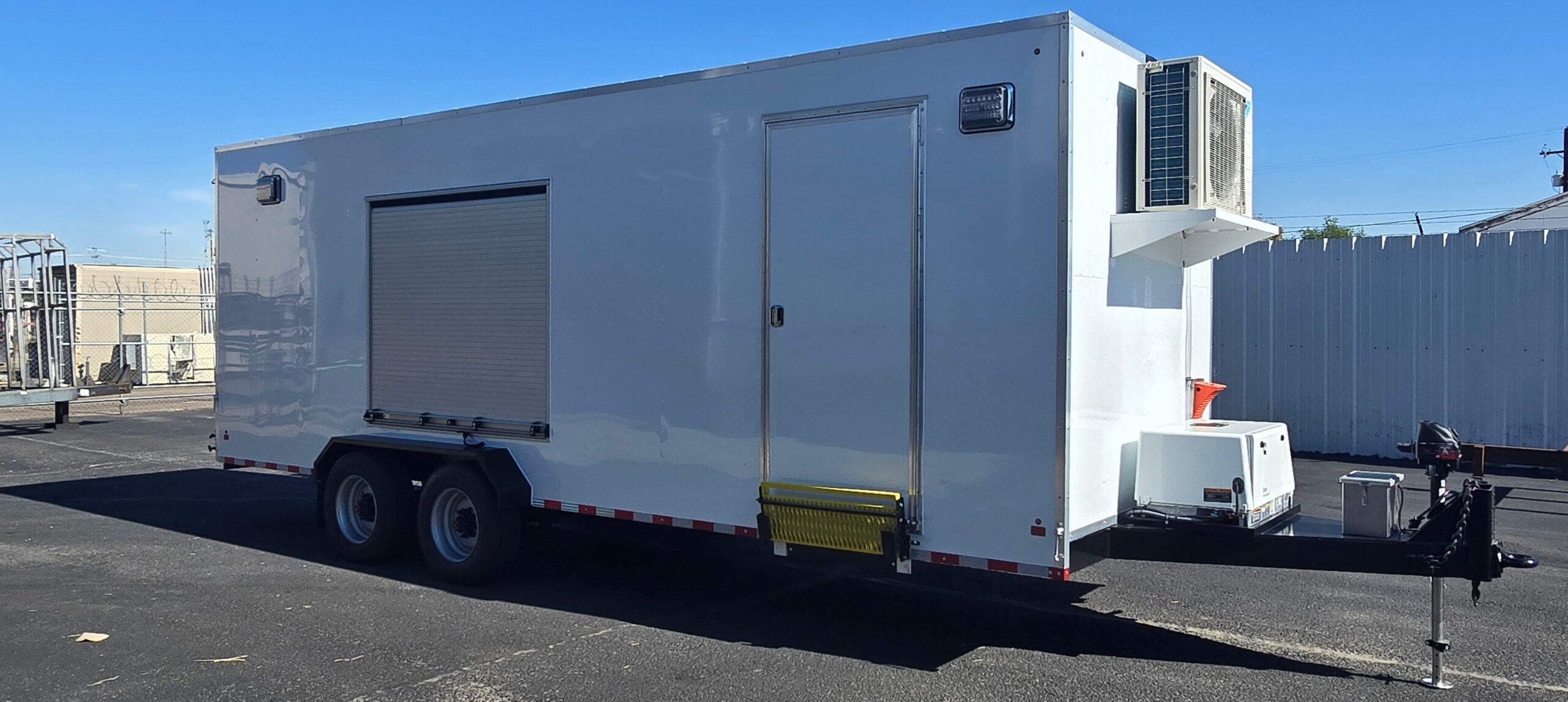

This meticulously designed substation maintenance trailer is a marvel of innovation, offering a versatile solution for housing and transporting specialized equipment. It features a Daikin Mini Split A/C system, with the outdoor unit ingeniously mounted at the front of the trailer on a custom shelf, and two inside units for efficient cooling of the large substation maintenance trailer work area. The 7 kW generator and battery are housed in a weatherproof box on the front tongue ensuring the trailer’s full operation capabilities even on the most remote substation maintenance trailer worksites. The trailer is equipped with five scene lights, strategically placed to illuminate its surroundings.
This trailer is a model of efficiency, with multiple access points for internal substation maintenance trailer items. It features a side entry door and two rear doors spanning the width of the rear, facilitating the flow of people and enabling the loading of larger objects from the substation maintenance trailer rear. On the curbside, a roll-up door above the wheel well provides exterior access to the four Hannay Reels, further enhancing the substation maintenance trailer’s functionality.
On the street side in the front corner, a large access hatch provides pass-through access to the Hannay Reel under the counter, with a smaller hatch for moments when just the substation maintenance trailer shore cord needs to be used. The four 21′ Aluminum tubes offer secure and specialized substation maintenance trailer storage, further enhanced by their easy removal if needed. This design ensures the safety and security of your equipment, providing you with peace of mind.

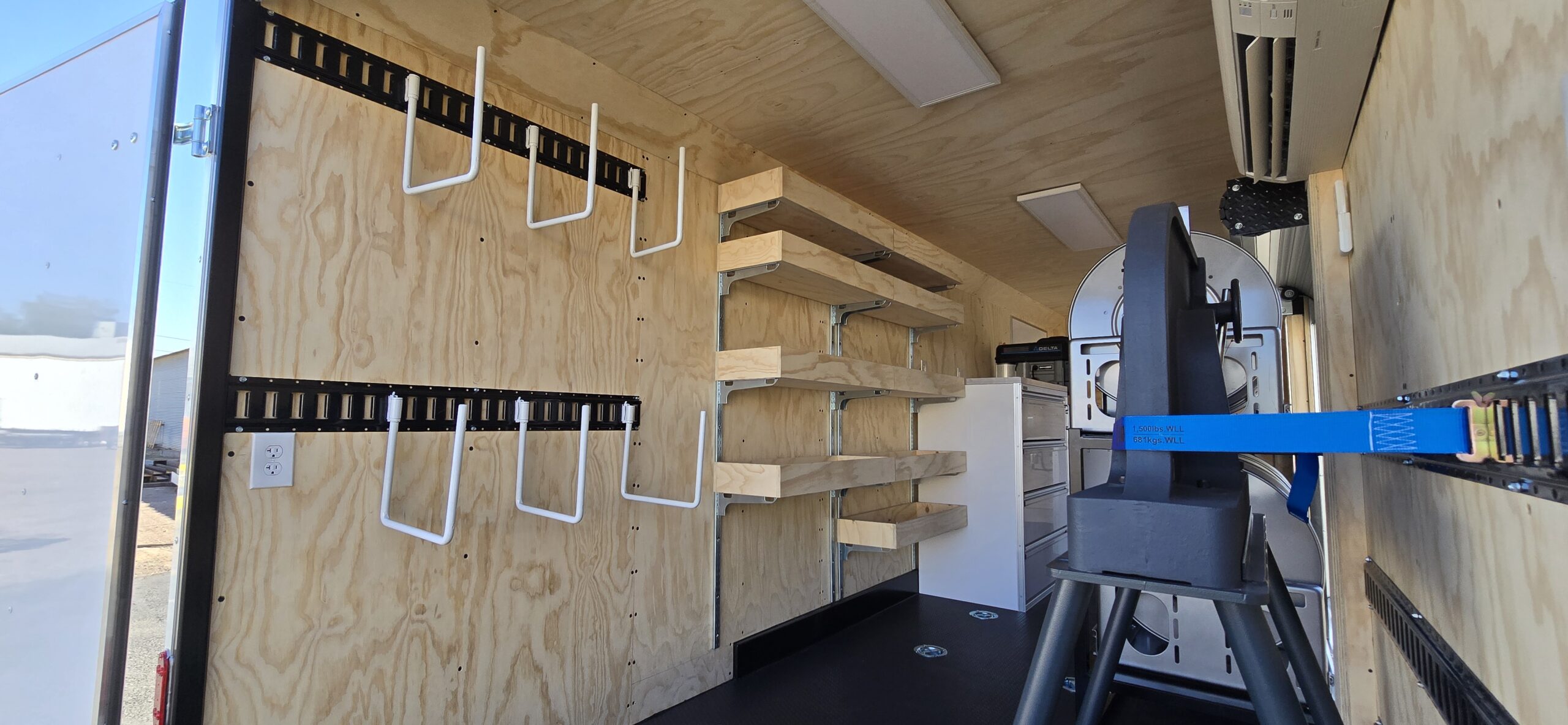

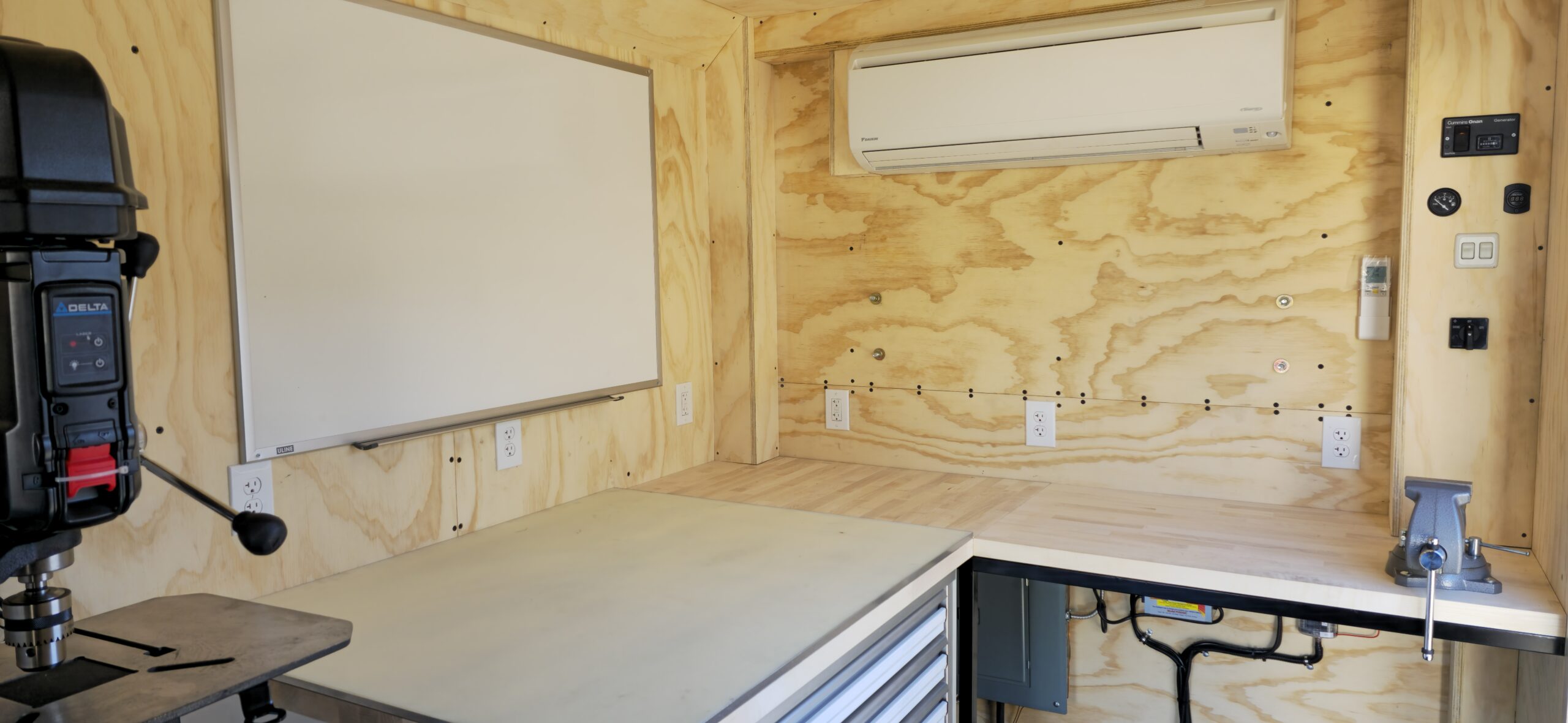

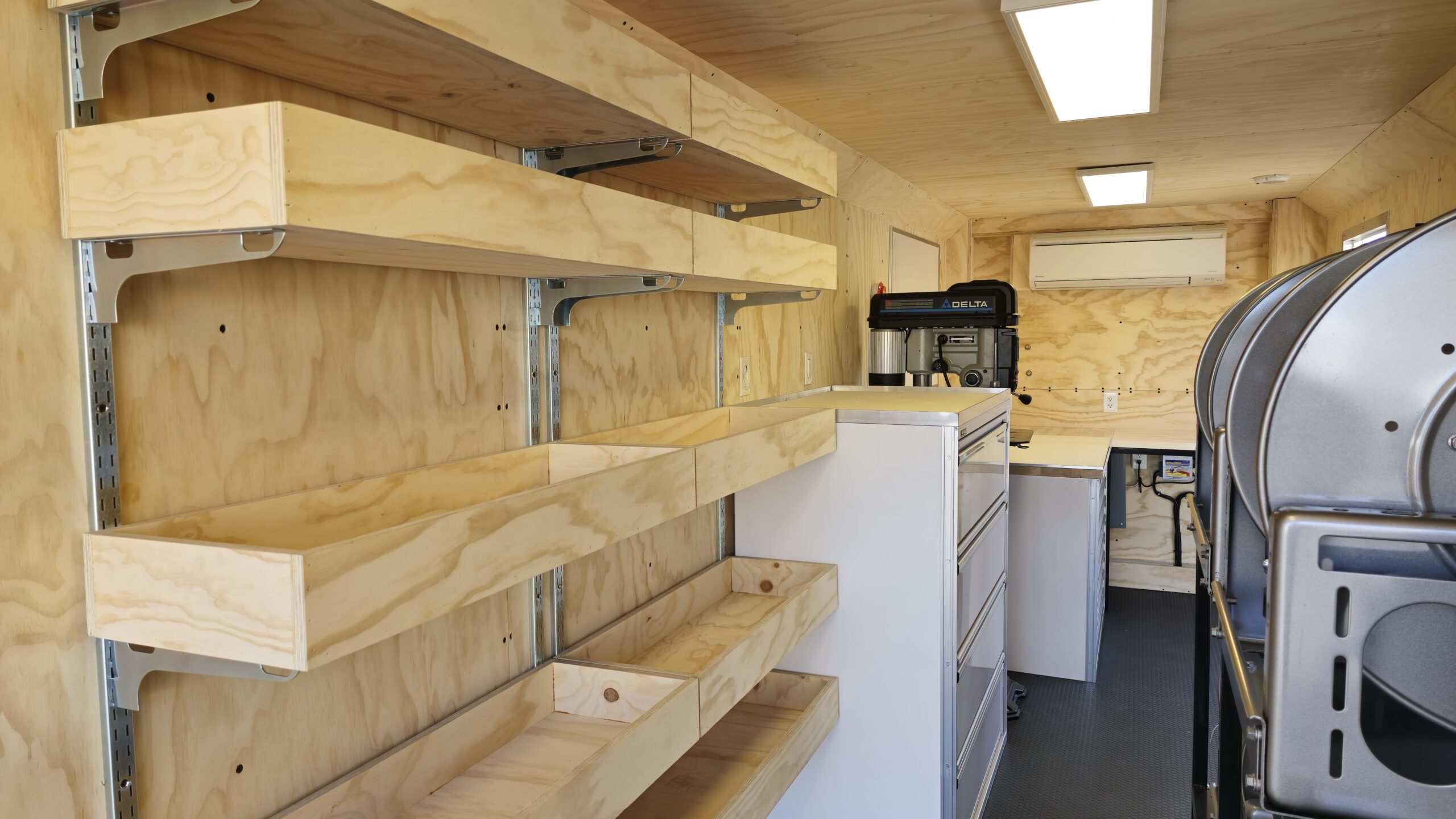

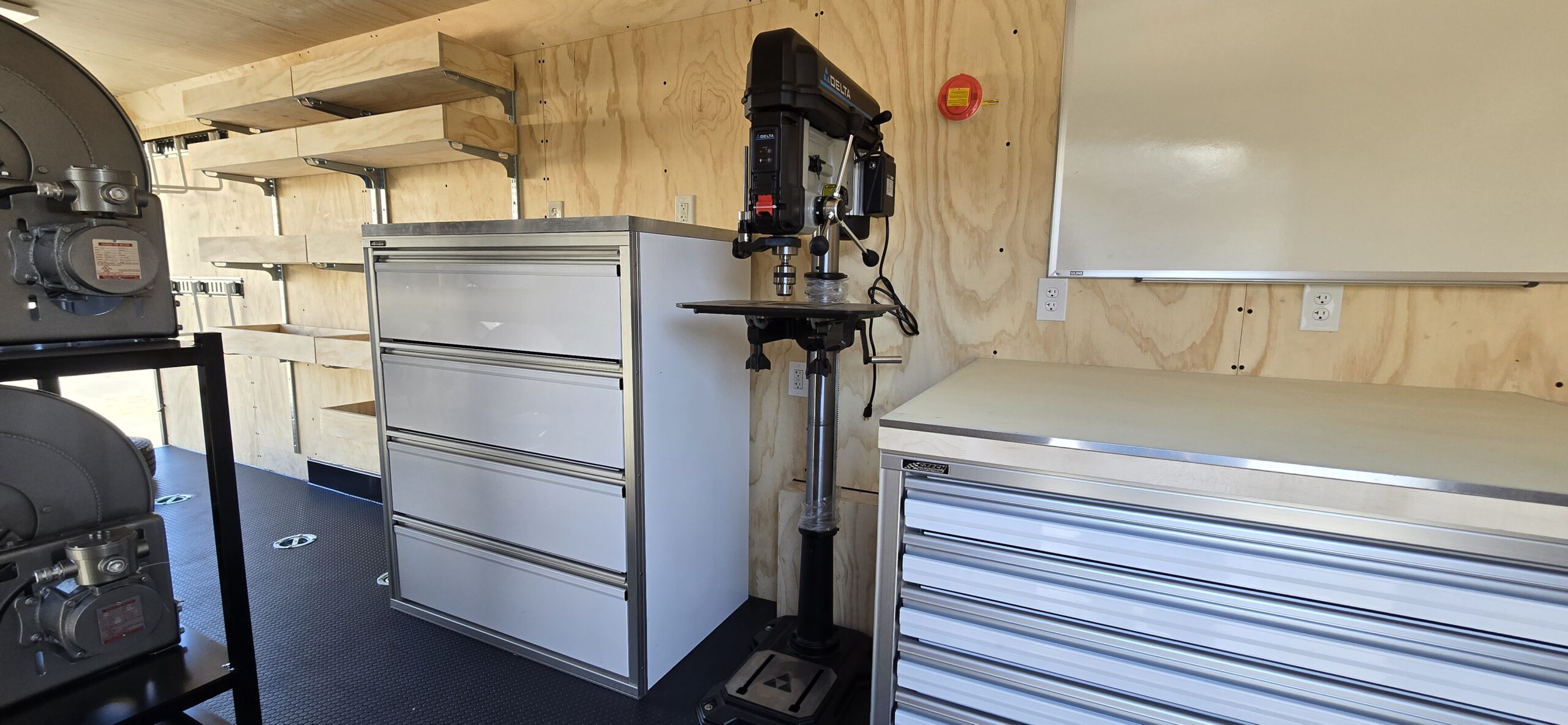

Stepping into the substation maintenance trailer from the side door is a counter stretching the width of the front wall with outlets above. Under this counter is the shore cord reel in the street side corner, as well as all the substation maintenance trailer electrical system and fuse boxes. Off this counter down the street side is another stretch of counter, just enough to cover a custom aluminum drawer unit underneath the substation maintenance trailer counter. Continuing down this side is a drill press secured to the floor for safe substation maintenance trailer traveling. It is also between the counter and a larger heavy-duty substation maintenance trailer drawer unit. Past this, above the wheel well, are nine adjustable substation maintenance trailer shelves. In the very rear are two strips of E-Track with six hooks for 2″ oil hoses.

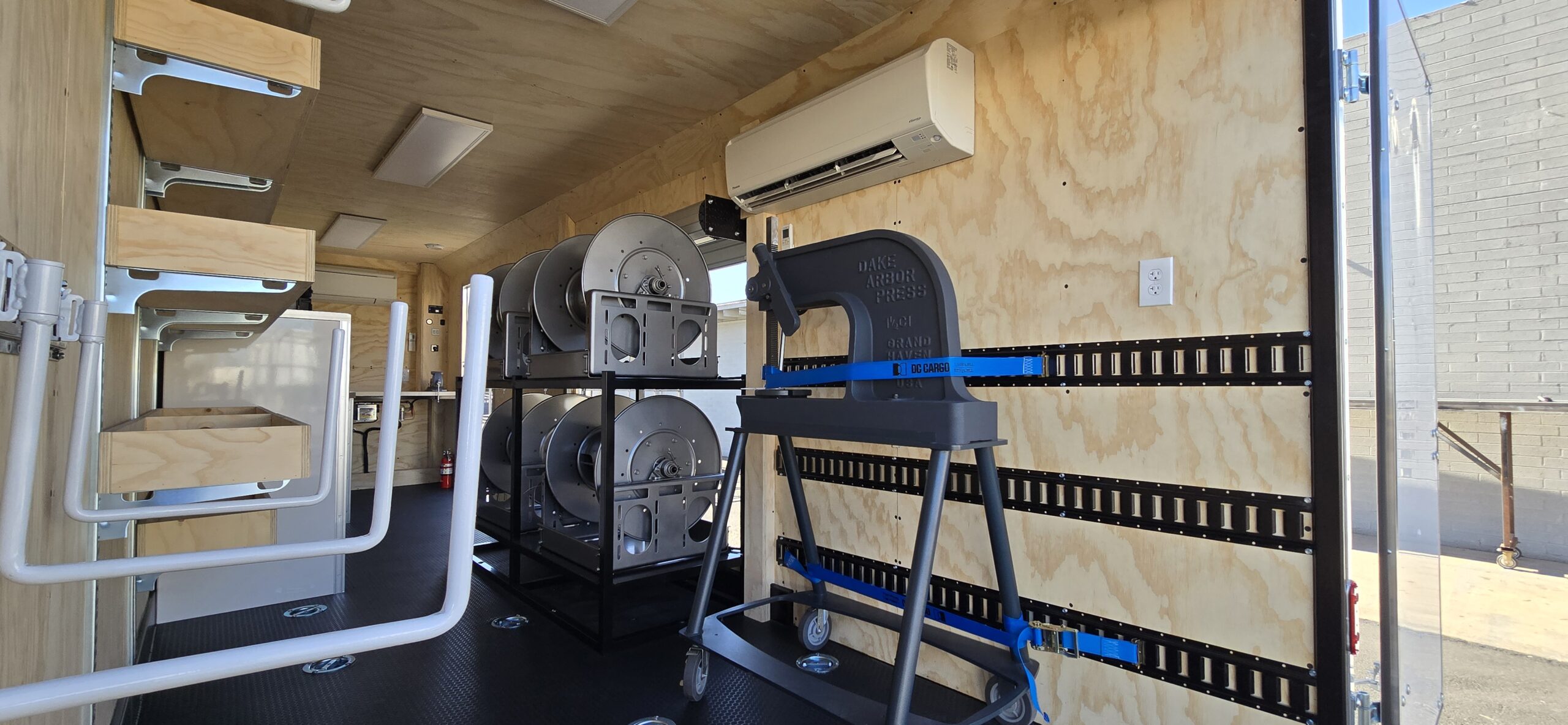

On the curbside, starting from the substation maintenance trailer rear, are three additional E-Tracks to secure a movable arbor press. In front of that, over the wheel well, are the four reels in front of the substation maintenance trailer roll-up door. There are also 12 securing D-rings recessed into the floor for large equipment securement.
With its robust design and thoughtful substation maintenance trailer layout, this substation maintenance trailer not only maximizes functionality but also prioritizes the safety and organization of your essential tools and equipment. Whether on a job site or during transport, it stands ready to meet the demands of any task with efficiency and substation maintenance trailer ease.
Transform your operations with a custom substation maintenance trailer designed to meet your unique needs! Whether you require specialized storage, innovative equipment placement, or efficient workspace solutions, we can bring your vision to life!
Contact us today to discuss how we can create the perfect custom vehicle or substation maintenance trailer tailored just for you! Your ideal workspace is just a call away!
